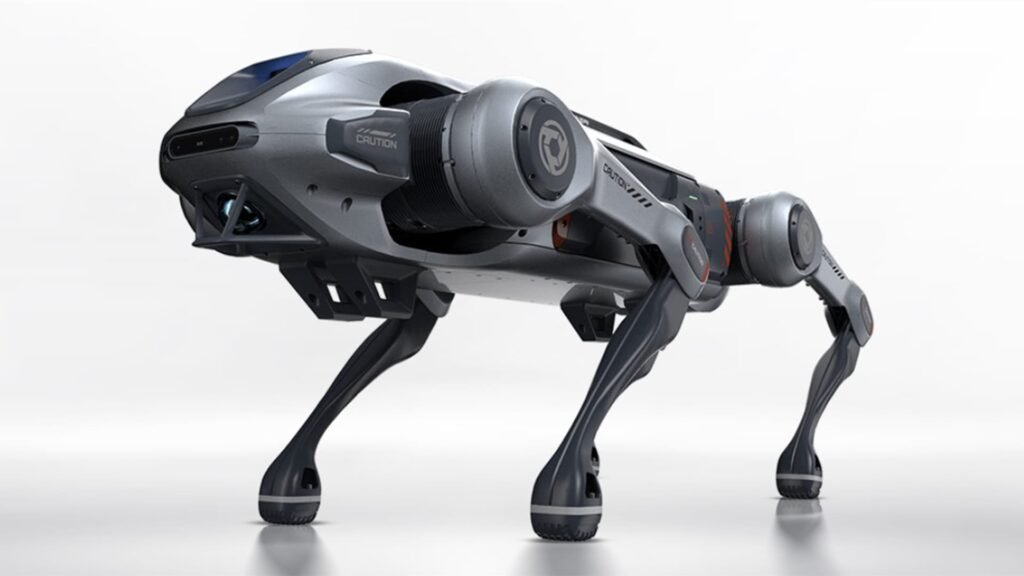

Heavy-Duty, High-Mobility Quadrupedal Embodied Intelligence Platform
Engineered as ENGINEAI’s first heavy-duty, highly maneuverable quadrupedal robot, the JS01 sets a new benchmark in embodied AI platforms designed for real-world operations across industrial inspection, emergency response, logistics support, and rugged terrain autonomy. Built from the ground up for stability, load capacity, and sensory intelligence, the JS01 transforms legged robotic mobility into a reliable asset for complex environments.
JS01 Summary
The JS01 is a quadrupedal embodied intelligence system developed by ENGINEAI (ZhongQing Robot), optimized for high-payload performance, dynamic mobility, and comprehensive environmental perception. With an 80 kg payload capacity and advanced multi-sensor fusion, JS01 is positioned to meet the growing demand for autonomous legged robotics in enterprises, public safety, and remote operations. Its design emphasizes mechanical aesthetics, robust structure, and adaptability to diverse operational scenarios.
Key Capabilities and Technical Highlights
1. Mechanical Design & Structural Aesthetics
- Family-design language with “Supersonic Gray” color scheme for technological depth and visual refinement.
- Aerodynamically inspired surface contours balance structural strength with visual rhythm and fluidity.
- External panels constructed from aviation-grade aluminum alloy for high impact resistance and system protection.
- Fully self-developed joint modules with integrated active cooling for extended high-load operations.
2. Mobility and Dynamics
- Top locomotion speed: Up to 3 m/s enabled by high-performance drive actuators and precision motion control algorithms.

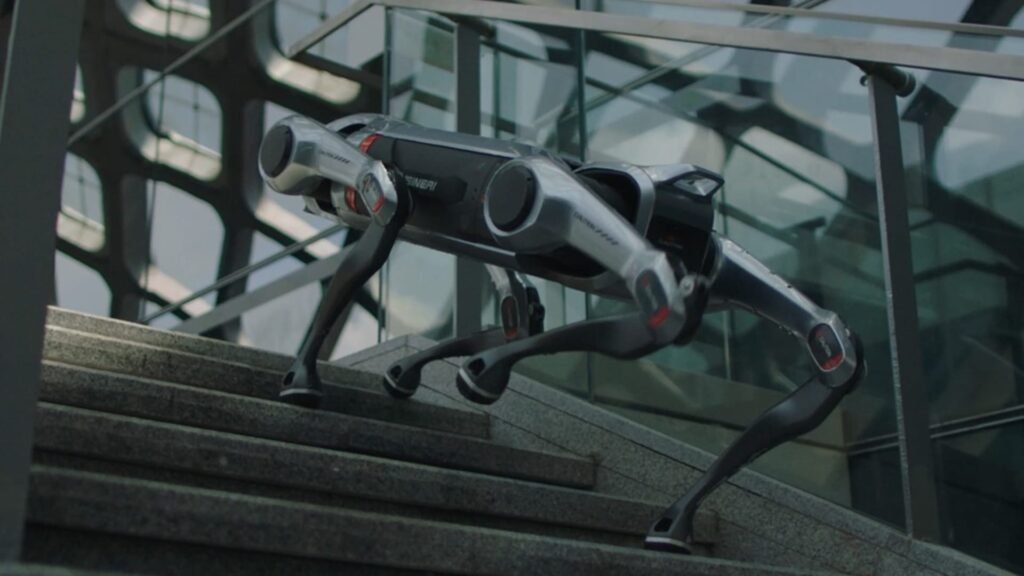

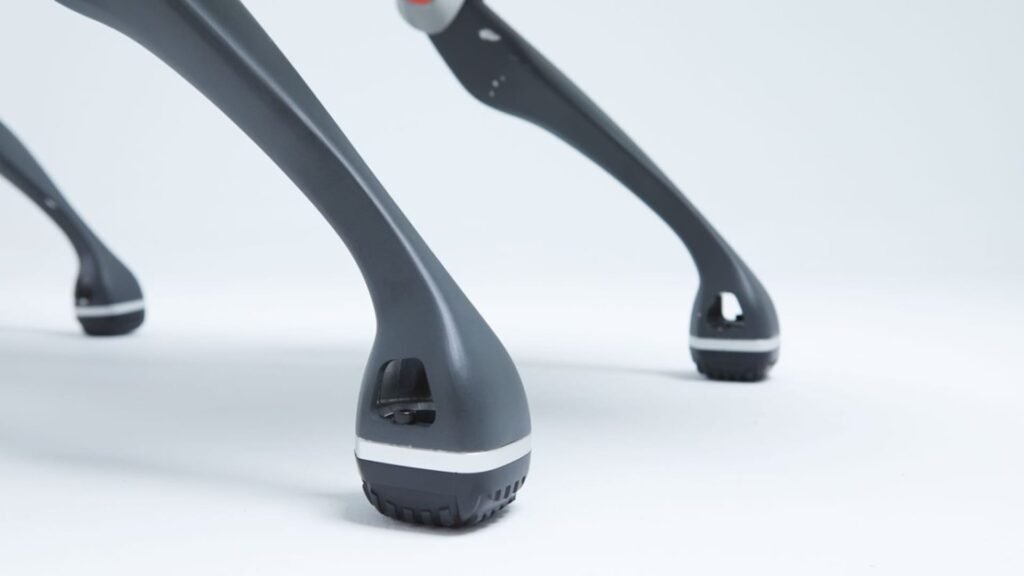

- Bionic quadruped architecture: Custom adaptive damping joints and terrain-aware gait adjustment ensures stability on uneven, slippery, or fractured surfaces.
- Real-time terrain perception and adaptive locomotion control support traversal across complex outdoor environments.
3. Sensor Suite & Environment Perception

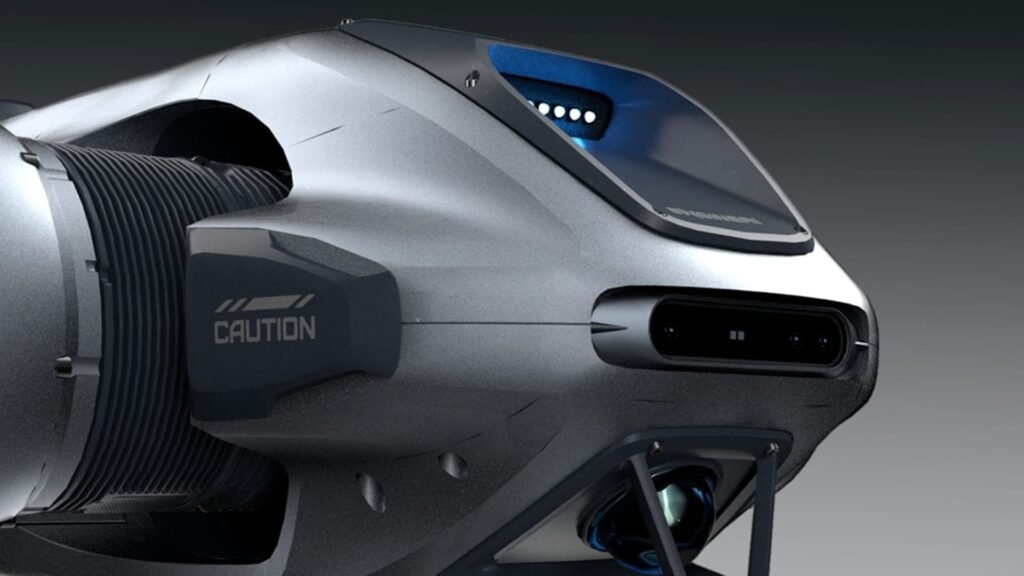

- Integrated LiDAR for accurate 3D mapping.
- Wide-angle vision cameras with depth sensing for obstacle detection.
- IMU inertial measurement unit for robust state estimation and dynamic stabilization.
- Millisecond-scale sensor data fusion for high-confidence perception and decision support.
4. AI Navigation & Autonomy
- Onboard AI navigation algorithms perform high-resolution map construction using SLAM techniques, achieving centimeter-level localization accuracy.
- Intelligent path planning with dynamic obstacle avoidance allows autonomous route execution without manual intervention.
- Modular software framework enables customization of behavior policies for mission-specific tasks.
5. Power and Endurance
- High-capacity quick-swap battery (10,000 mAh) with real-time energy monitoring.
- Intelligent energy management optimizes consumption for endurance in continuous operation.
- Fast battery replacement mechanism minimizes downtime in field deployments.
Core Technical Specifications
| Parameter Category | Specifications |
|---|---|
| Payload Capacity | Up to 80 kg (heavy-duty class) |
| Max Locomotion Speed | 3 m/s |
| Battery | 10,000 mAh quick-swap module |
| Perception Suite | LiDAR + wide-angle cameras + IMU |
| Navigation Precision | Centimeter-level SLAM |
| Design | Aviation aluminum alloy exoskeleton |
| Sensor Fusion Latency | Millisecond-scale |
| Operational Modes | Autonomous navigation, waypoint following, obstacle avoidance |
| Expansion Architecture | Modular payload and sensor integration interface |
Note: All specifications are subject to configuration and operational conditions.
Designed for Real-World Autonomous Deployment
The JS01’s sensor fusion architecture, adaptive control systems, and navigational cognition make it suitable for multiple practical domains:
- Industrial Inspection: Automated site surveying in complex facilities with dynamic obstacles.
- Emergency Rescue: Rapid, autonomous traversal in disaster zones for situational assessment.
- Logistics & Material Handling: High-load transport and staging in uneven warehouse environments.
- Remote Field Operations: Telecommunications, energy sector inspection, and infrastructure maintenance.
By combining rugged physical design with intelligent autonomy, JS01 bridges the gap between research robotics and production-grade operational systems.
Competitive Positioning
In 2025, the robotics industry is accelerating adoption of quadrupedal platforms as foundational field agents. Where traditional wheeled systems lack terrain flexibility and humanoid robots face mechanical complexity, the JS01’s quadruped framework achieves a high degree of ground adaptability while maintaining practical payload capability relative to comparable systems from both research institutions and commercial integrators.
ENGINEAI JS01 For Reality
The ENGINEAI JS01 marks a strategic evolution in legged robotics: a robust, mobile, multi-sensor autonomous platform engineered for demanding real-world environments. With a compelling combination of payload performance, dynamic mobility, environmental intelligence, and modular extensibility, JS01 is positioned to deliver tangible operational value across industries that require reliable, autonomous physical agents in complex terrain and mission-critical contexts.
