Unitree H1

Full-size high-torque general-purpose humanoid robot for heavy industrial material handling, autonomous factory inspection, university dynamic motion research & large-scale stage performance

Unitree H1

Core Highlights

Feature	Detailed Description
Industry-Leading Joint Torque	360N·m peak knee actuator torque, 2–3x higher than mid-tier humanoids, supports 30kg static full-body payload
Class-Leading Dynamic Locomotion	Sustained 3.3m/s running speed, theoretical peak 10m/s sprint, 30° slope climbing & 15cm obstacle crossing capability
Full-Body Multi-Modal Perception Suite	360° 3D LiDAR + iToF depth camera + 6-axis force sensors on every limb, zero blind spot environmental mapping
Unitree Native UnifoLM Embodied Large Model	Full edge offline reasoning, native reinforcement learning training, full OTA firmware & AI weight update support
Fully Open Full-Stack Industrial SDK	Complete ROS2, Python, C++ low-level motor access, full simulation environment for factory & research secondary development
Modular Fast-Swap Hardware Design	30-second hot-swappable 864Wh lithium battery, plug-and-play dexterous hand, expandable industrial compute module

Release Info

Item	Full Details
Full Robot Name	Unitree H1 (Gen1 Base Model / H1-2 Updated Industrial Variant)
Manufacturer	Unitree Robotics (Hangzhou, China)
Country of Origin	China
Robot Type	Full-Size Heavy-Duty General-Purpose Biped Humanoid Robot
Official Global Announcement	August 15, 2023 (World Robotics Conference 2023)
Original Prototype Reveal	August 16, 2023 public demo video with dynamic running & anti-tilt impact testing
H1-2 Updated Variant Launch	Q4 2024
Mass Production Rollout	Q4 2023 small batch production; Q2 2026 full scaled industrial mass manufacturing
Global Mass Delivery Window	Late 2023 – Ongoing global shipment to labs, automotive OEMs & research institutions
Commercial Deployment Timeline	Mid-2024 onward (Geely/NIO auto factory test lines, top-tier university robotics labs, national gala stage performances)

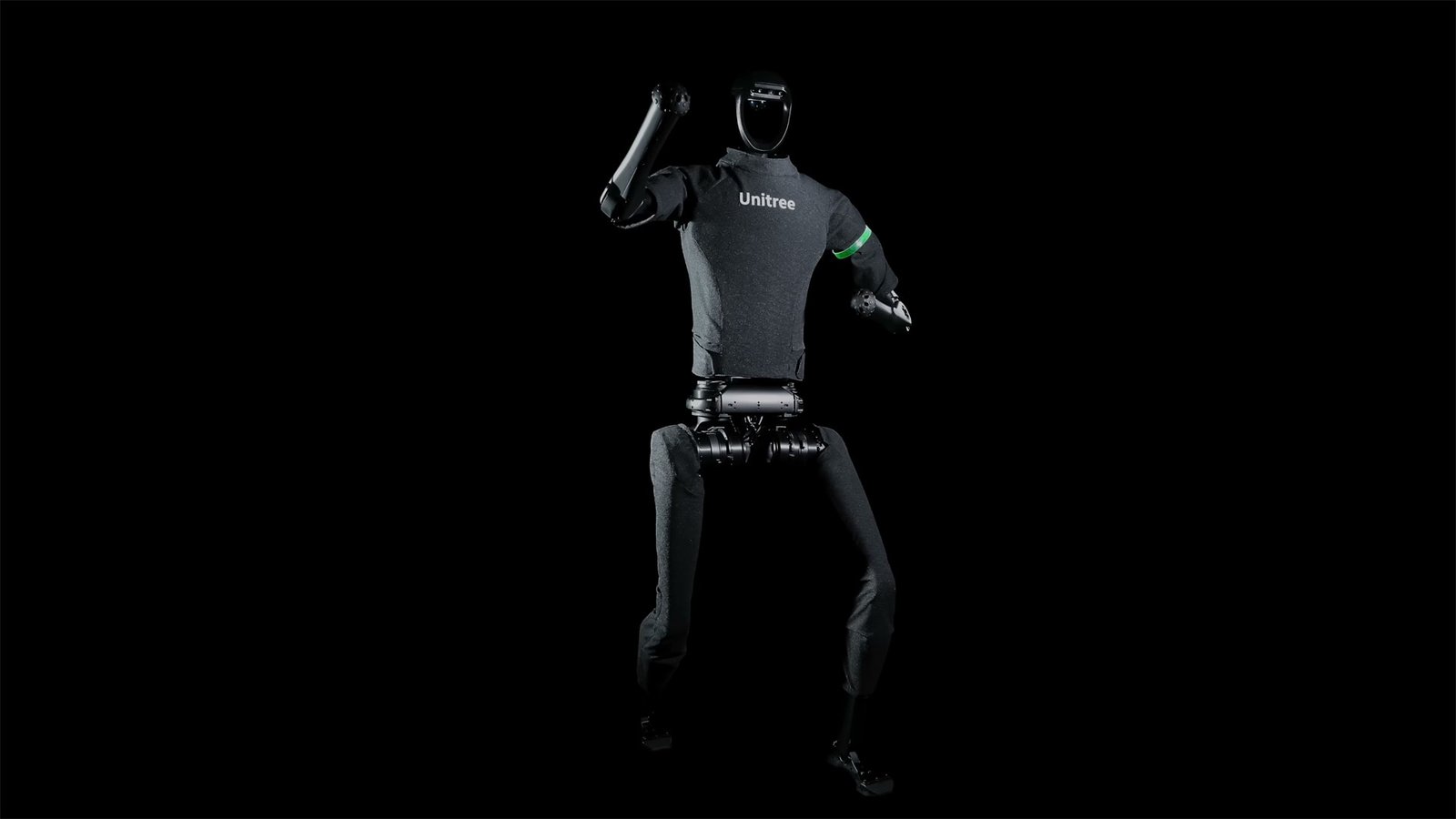

Unitree H1

Overview

Unitree H1 marks Unitree Robotics’ debut full-size humanoid robot, engineered to resolve the core industry pain point of low torque and limited payload plaguing mid-size humanoid platforms like G1 and R1. Unlike Tesla Optimus, which prioritizes consumer household tasks and closed proprietary software, H1 adopts an industrial-first, fully open technical roadmap built on Unitree’s decade-long quadruped robot motion control stack.

The core design tradeoff abandons ultra-lightweight compact sizing for high-strength carbon fiber and titanium alloy structural components, paired with self-developed M107 high-torque joint actuators to deliver industry-leading lifting and dynamic movement performance. All perception hardware, motion control firmware, and UnifoLM embodied large model are fully self-developed in-house, eliminating overseas component supply chain bottlenecks. Its biggest market differentiation is balancing extreme dynamic running speed and heavy payload capacity, a combination unmatched by Western humanoid competitors, while maintaining fully open developer access for academic and industrial custom algorithm development.

Key Specifications

Full Spec Comparison

Spec Parameter	Unitree H1 Original Base	Unitree H1-2 Industrial Updated Variant	Tesla Optimus Gen 2 Benchmark
Official Robot Name	Unitree H1 Gen1 Base	Unitree H1-2 Industrial	Tesla Optimus Gen 2
Developer	Unitree Robotics	Unitree Robotics	Tesla Inc.
Country	China	China	United States
Robot Type	Full-Size Heavy-Duty Biped Humanoid	Industrial Optimized Full Biped Humanoid	General-Purpose Household & Factory Humanoid
First Announced	August 15, 2023	Q4 2024	December 2023
Mass Prototype Reveal	August 16, 2023	October 2024	December 2023 viral demo footage
Standing Dimensions H×W×D	1780mm × 570mm × 220mm	1788mm × 580mm × 230mm	1730mm × 620mm × 240mm
Total Full Machine Weight	47kg bare chassis	70kg full industrial configuration	57kg
Full-Body Static Payload Capacity	30kg full torso carry	40kg maximum load	20kg total body payload
Single Arm Carrying Capacity	7kg per arm static lift	10kg single arm peak load	5kg per arm maximum
Maximum Continuous Linear Moving Speed	3.3m/s sustained running	2.5m/s stable industrial walking	2.22m/h (8km/h)
Peak Theoretical Sprint Speed	10m/s short burst	6m/s controlled sprint	N/A, speed capped for factory safety
Power System Architecture	67.2V high-voltage lithium modular pack	67.2V upgraded low-loss power distribution	48V low-voltage battery system
Single Hand Degrees of Freedom	4 DOF base arm, optional 11 DOF tactile dexterous hand	7 DOF standard arm, 11 DOF multi-tactile hand factory standard	11 DOF per hand with full finger tactile sensing
Full-Body Locomotion DOF Layout	19 total DOF (10 leg + 1 waist + 8 arm)	27 total upgraded DOF (12 leg + 1 waist + 14 arm)	28 full-body DOF
Primary Power Source	864Wh swappable lithium battery pack	864Wh extended cycle industrial battery	53kWh equivalent compact lithium pack
Standard Continuous Battery Life	2 hours low-speed walking	1.5 hours heavy payload industrial operation	2.2 hours standard duty cycle
Onboard Native AI System	Lightweight edge UnifoLM-Lite LLM, expandable Orin slot	Full UnifoLM-X1 industrial embodied large model	Tesla FSD-derived proprietary vision neural network
Primary Target Industry Use Cases	Dynamic motion research, stage performance, light factory material transport	Automotive factory assembly, heavy goods logistics, industrial equipment inspection	Internal Tesla factory component sorting, future household domestic labor
Official China Retail Price (CNY)	¥650,000 base configuration	¥700,000 industrial full package	Not commercially available for external sale
Global Pre-Tax USD Equivalent Price	$91,800 base spec	$99,100 full industrial variant	Estimated future target $20,000–$30,000

Design, Hardware and Engineering

1. Body Material & Structural Breakdown

Body Section	Material Composition	Core Engineering Performance Advantage
Main Torso Skeleton	Hollow carbon fiber composite + 7075 aerospace aluminum alloy	40% higher structural rigidity than Unitree G1, 30% lower inertial mass under heavy payload loads
Leg & Arm Joint Housing	Reinforced PEEK + wear-resistant PPA engineering plastic	Low friction sliding bearing design, 20% reduced manufacturing cost, long-term dust resistance for factory environments
Internal Cable Layout	Full hollow joint internal wiring, zero external exposed cables	Eliminates cable snags during dynamic running, lifting and obstacle crossing
Head Interactive Housing	Matte impact-resistant polycarbonate with integrated sensor cutouts	Lightweight, scratch-proof, fully encloses LiDAR and depth camera sensing hardware
Foot Contact Base Pad	Multi-layer high-friction composite rubber with anti-slip texture	Maintains stable traction on concrete, metal workshop floors, tile and slightly damp industrial ground surfaces

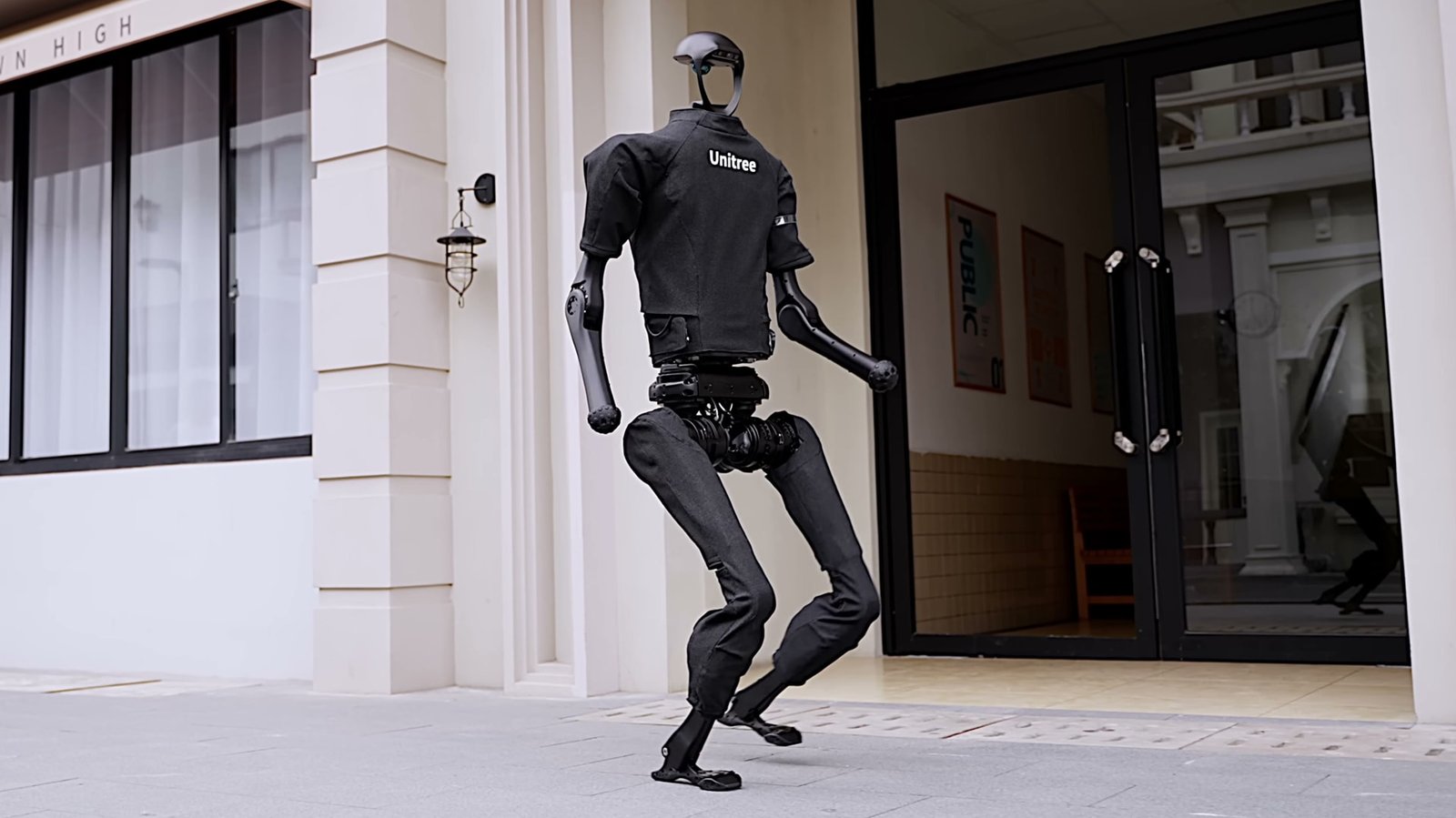

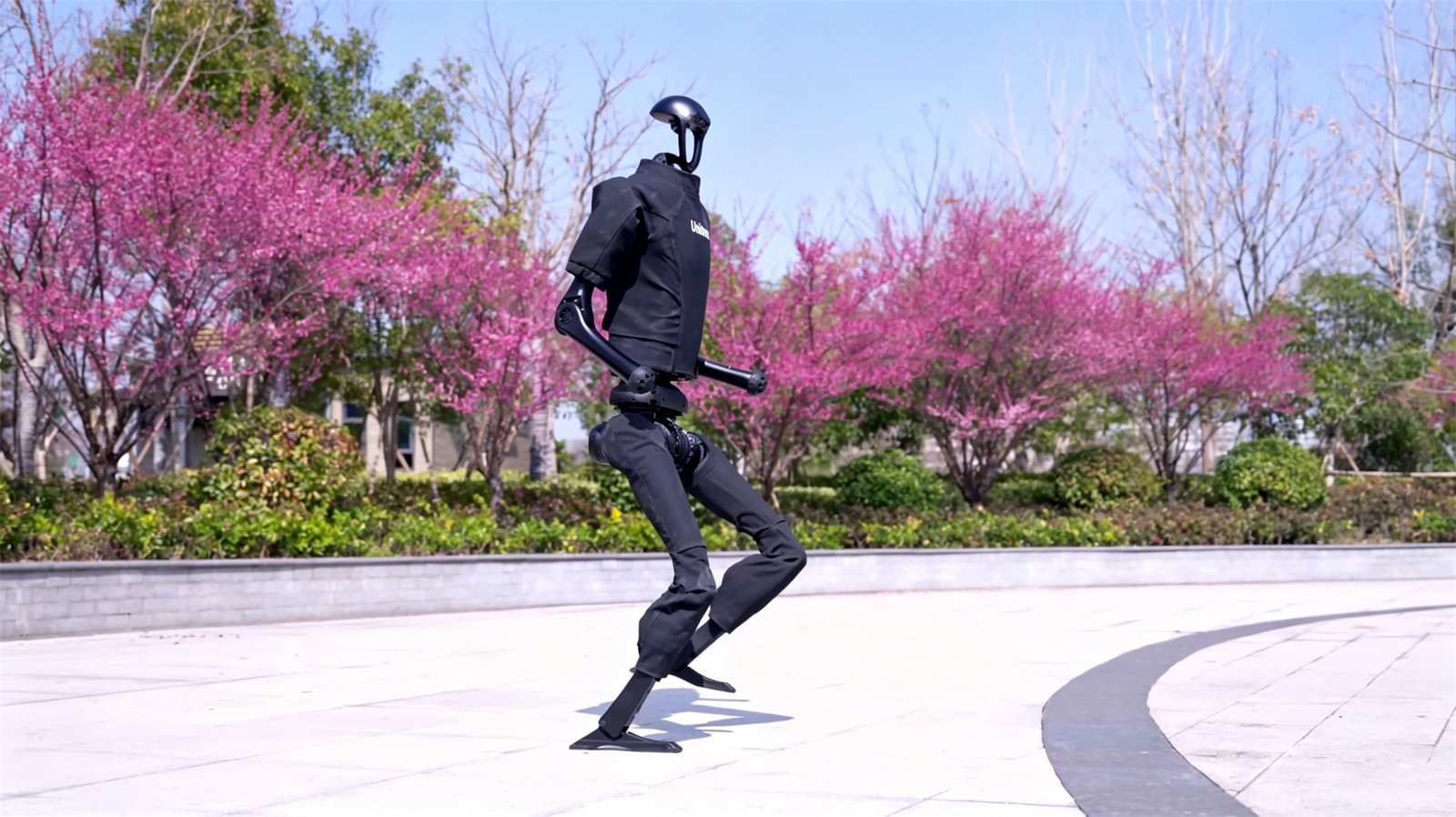

Walk Unitree H1

2. Full-Body DOF Joint Layout Breakdown

Body Segment	H1 Gen1 Base DOF Count	H1-2 Industrial Variant DOF Count	Functional Upgrade Benefit of Extra Joint Degrees
Dual Leg Assembly (Per Leg)	5 DOF (3 Hip + 1 Knee + 1 Ankle)	6 DOF per leg, 12 total leg DOF	Adds ankle lateral rotation, enables stable traversal of uneven factory terrain and 30° steep slope climbing
Waist Torso Rotation	1 DOF ±150° horizontal yaw rotation	1 DOF ±180° wide rotation range	Expands arm horizontal working radius without repositioning the robot’s full body base
Dual Arm Assembly (Per Arm)	4 DOF shoulder + elbow rotation	7 DOF per arm, 14 total arm DOF	Adds wrist pitch, roll and yaw axes, supports multi-angle assembly and component manipulation without body repositioning
Single Hand End Effector	Base 4 DOF soft gripper, optional 11 DOF tactile dexterous hand	Factory standard 11 DOF full tactile multi-finger hand	3g-level finger tactile sensing, capable of gripping fragile electronic parts, bolts and flexible packaging materials
Head Motion Joints	2 DOF pan/tilt sensor mount	2 DOF extended vertical pitch range	360° horizontal environmental scanning, vertical inspection up to 1.8m tall factory equipment
Total Max Full-Body DOF Sum	19 fixed baseline layout	27 industrial expanded modular configuration	Simulates complete human full-body heavy lifting, assembly and dynamic locomotion sequences unavailable on lower-DOF mid-tier robots

3. Locomotion, Torque & Balance Hardware Spec

Hardware Component	Technical Parameter	Real-World Measured Performance Output
Self-Developed M107 Joint Actuator	Peak knee torque 360N·m, hip torque 220N·m, wrist torque 75N·m	Delivers enough instantaneous force to lift 30kg loads while maintaining 3m/s running speed
Full-Body Distributed IMU + Six-Dimensional Force Sensor Network	500Hz real-time center-of-mass calculation refresh rate	Instant gravity and ground reaction force adjustment, self-righting recovery within 1.5 seconds after heavy impact or tipping
Unitree Proprietary MCC MPC Motion Control Core	10ms joint response latency, thousand-times-per-second gait recalculation	Adaptive gait auto-tunes for slopes, uneven ground, payload weight changes and slippery workshop surfaces
Vertical Static Jump Capability (H1 Gen1 Only)	0.4m maximum vertical leap height	Demonstration-grade obstacle crossing, stage stunt performance capability
Modular Quick-Swap Battery Mechanism	Tool-free 30-second battery replacement process	Eliminates multi-hour charging downtime for 24-hour continuous factory operation shifts
Full-Body Collision Safety Interrupt Logic	0.2s torque cut-off trigger on hard contact	Prevents high-torque joint actuator burnout during accidental collisions with factory machinery, walls or workpieces

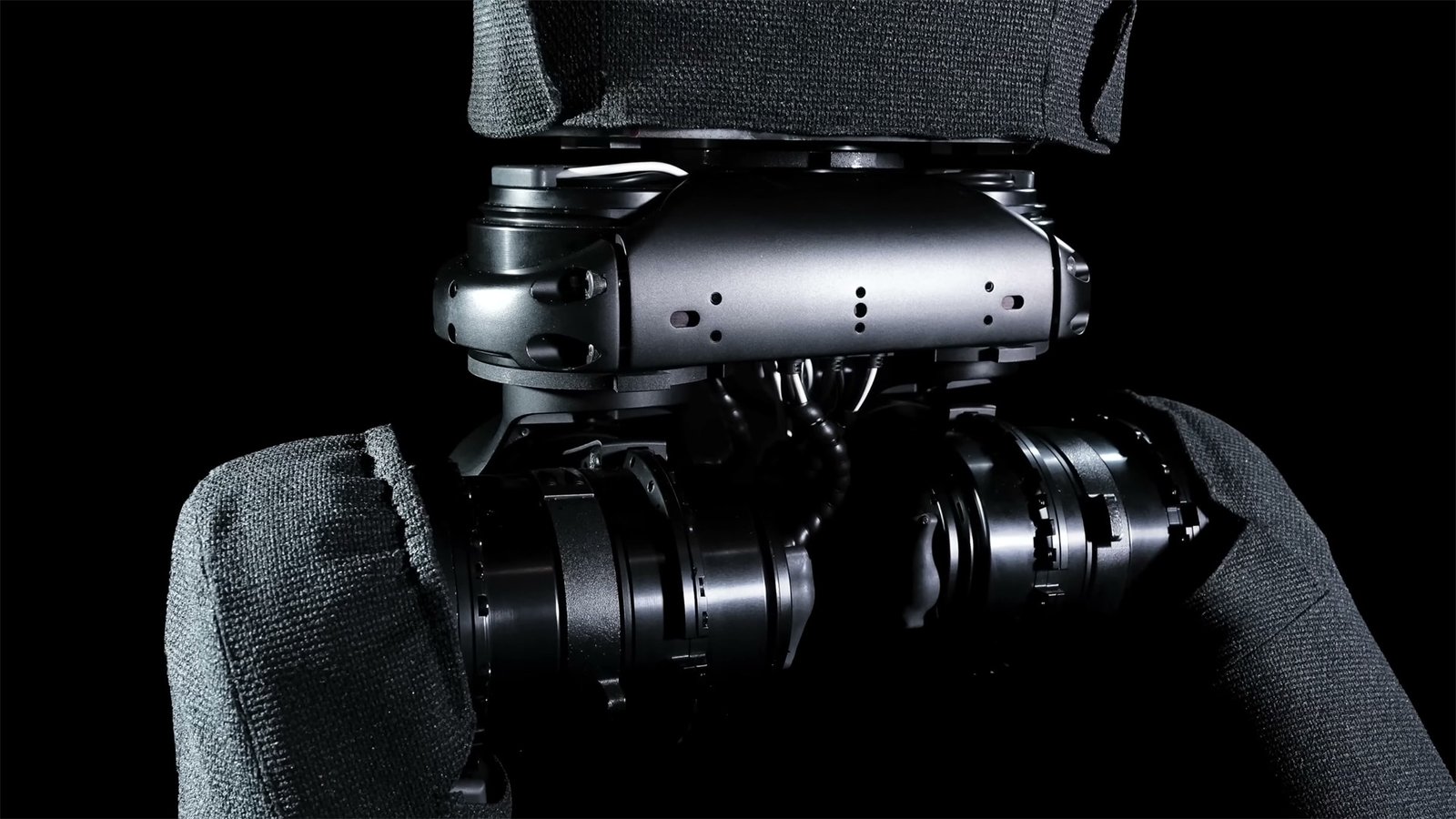

Waist Unitree H1

AI & Technology

Perception Sensor Module	Hardware Model	Detection Range & Core Functional Purpose
360° Full-View Solid-State LiDAR	Livox Mid-360 Custom Industrial Variant	0.1–15m long-distance terrain mapping, 360° horizontal field of view, eliminates blind spots for autonomous factory navigation
Dual iToF RGB-D Depth Cameras	Orbbec Femto Series Industrial Grade	0.2–8m close-range workpiece segmentation, fine-grained object coordinate calculation for precision grasping, low-light factory environment compatibility
Four-Channel Noise-Cancelling Microphone Array	Built-in industrial noise suppression hardware	4-meter voice pickup distance, filters workshop machinery background noise for natural language task voice commands
Distributed Piezoelectric Tactile Force Sensors	Embedded within all arm joints and optional dexterous hands	Real-time workpiece weight detection, automatic grasping force adjustment to avoid crushing fragile electronic or plastic components
Head RGB Status LED Indicator Panel	Programmable multi-color status mask	Visual task state feedback, error alert signaling, interactive performance display for exhibition scenarios
Optional Upgrade Module: Onboard High-Speed Compute	NVIDIA Jetson Orin NX 100TOPS Expansion Slot	Handles complex multi-step industrial assembly planning, swarm robot coordination and advanced reinforcement learning model training

2. UnifoLM Embodied Large Model AI Brain Feature

AI Capability	Technical Implementation Details	Practical End User Value For Factories & Labs
Full Local Edge Offline Operation	Entire UnifoLM-Lite/X1 model runs on onboard native CPU without mandatory cloud internet connection	Secure offline processing of sensitive factory component assembly data, usable in air-gapped university research labs
Multi-Modal Multi-Input Compatibility	Natural voice command input, image target marking, manual drag-and-demonstrate imitation learning	New industrial sorting and assembly task workflows can be trained without advanced professional coding knowledge
Independent Full-Stack OTA Remote Firmware Updates	Separate update pipelines for motion control firmware, perception calibration datasets and large model neural network weights	Software feature expansions, gait optimization and AI capability upgrades without factory return or hardware disassembly
Reinforcement Learning Auto-Training Closed Loop	Automatically records successful grasping, locomotion and assembly motion data during daily operation, cloud batch optimization	Robot self-improves grasping accuracy and gait smoothness over cumulative runtime hours without manual algorithm tuning
Unstructured Natural Language Task Parsing Engine	Interprets unscripted industrial and everyday verbal instructions without rigid fixed keyword command syntax	Non-technical factory line operators can assign sorting, transport and inspection tasks using plain spoken language
Multi-Robot Swarm Coordination Native API	Built-in Wi-Fi 6 mesh networking support for multiple H1 units	Deploy synchronized multi-robot material transport and assembly workflows across large factory production floors

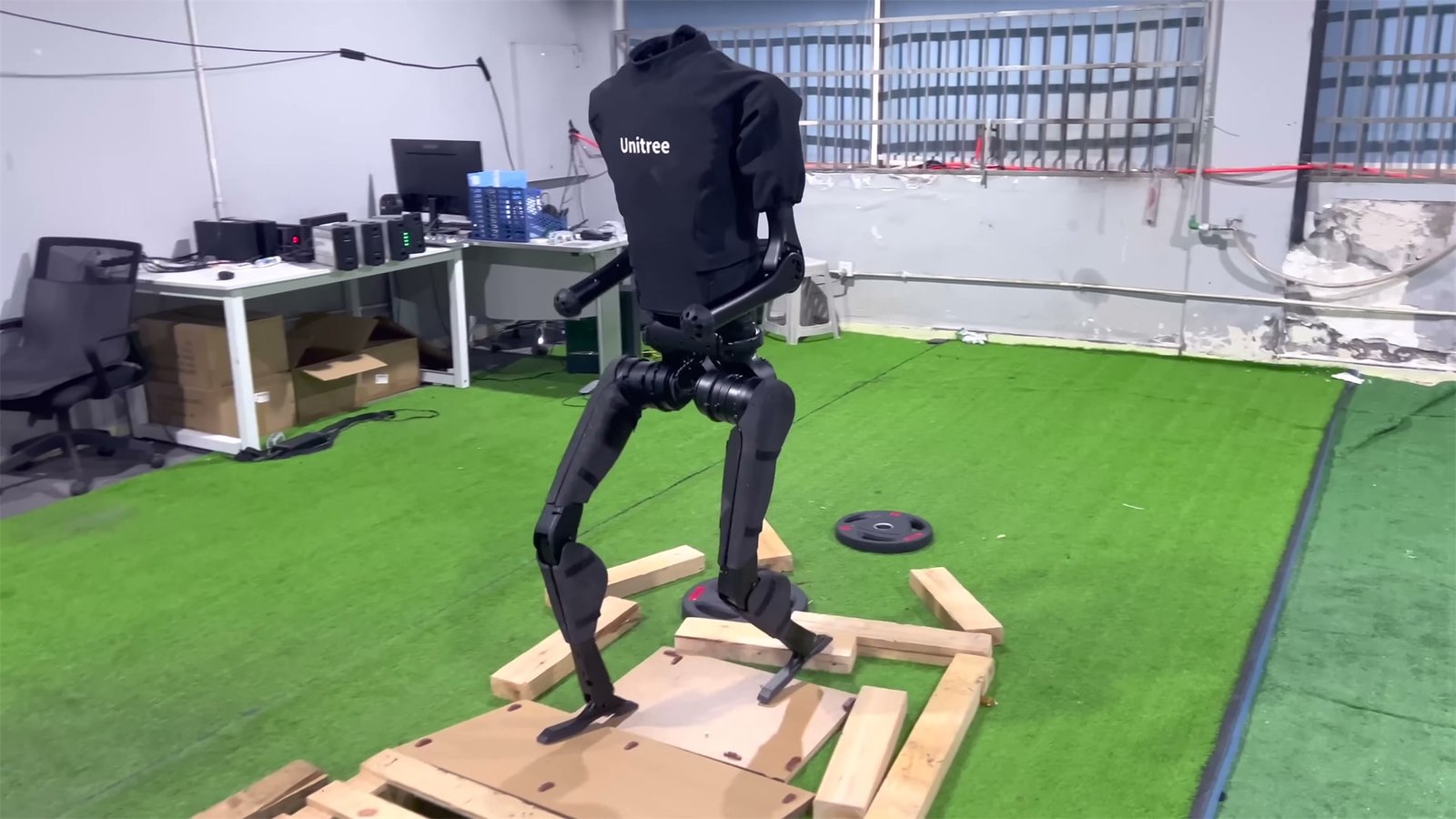

Balance Unitree H1

3. Real-Time Motion Control System Hierarchy

Motion Control Tier	Core Algorithm Framework	Precision & Safety Performance Metrics
Top Layer Task Planning Module	UnifoLM-X1 Multi-Step Sequential Task Scheduler	Breaks complex multi-stage factory assembly workflows into sequential grasp-move-place robotic sub-actions automatically
Middle Layer Gait & Arm Trajectory Generation	Unitree OmniStable MPC Model Predictive Control Algorithm	Real-time automatic offset adjustment for inconsistent workpiece placement, uneven ground and variable payload weight
Bottom Layer Joint Servo Closed-Loop Torque Control	Low-Cost High-Density M107 Actuator Real-Time Force Feedback	±0.08mm grasping repeat positioning precision for small electronic component assembly tasks
Fall & Collision Safety Subroutine	Pre-emptive joint torque power cut-off trigger logic	Prevents permanent actuator hardware damage when the robot collides with unexpected factory obstacles or stationary equipment

Capabilities & Autonomous

Autonomy Level & Functional Capability

Capability Category	Verified Real-World Functional Output	Official Autonomy Classification Level
Full-Site SLAM Autonomous Navigation	Real-time indoor factory 3D map construction, dynamic moving obstacle evasion, automatic routing between separate production workstations	Level 2 Partial Autonomy (multi-building large factory layouts require human supervision for route validation)
Autonomous Object Manipulation & Assembly	Automatic target workpiece identification, grab-release cycle execution, sequential multi-step component assembly operations	Level 2.5 Semi-Autonomous (pre-trained task packages run fully unattended on fixed workstations)
Independent Dynamic Locomotion & Fall Recovery	Automatic balance correction during heavy payload transport, self-righting after tipping, automatic gait switching between walk/jump/climb slope	Level 3 Full Motion Autonomy (zero manual gait parameter tuning required for standard indoor terrain)
Voice-Driven Task Assignment & Scheduling	Wake-word activation, multi-turn natural language dialogue, verbal scheduling of sorting, transport and equipment inspection workflows	Level 2 Hybrid Autonomy (cloud model access improves complex multi-step conversation depth)
Unsupervised Self-Optimization Learning	Persistent storage of operational motion data, auto-adjust grasping force and arm trajectory parameters, copy trained tasks to multiple H1 robot units	Level 3 Self-Training Autonomy

Officially Verified Autonomous Demo Performance

Autonomous Demo Test Scenario	Measurable Real-World Performance Result
Long-Duration Fixed Workstation Industrial Sorting	Continuous 6-hour unattended automatic classification of metal automotive fasteners, plastic trim parts and circuit board assemblies with zero human intervention
Low-Temperature Cold Storage Warehouse Autonomous Patrol	60,000 continuous walking steps at -10°C refrigerated vehicle parts warehouse without remote human control intervention
Multi-Station Mobile Component Transport	Autonomously navigate between 4 separate automotive assembly stations, deliver batch component loads with automatic dynamic obstacle avoidance
Zero-Code Secondary Development Custom Workflows	Factory technicians deploy custom packaging, quality inspection and material transport task sequences via Unitree Robot App Store without advanced programming expertise

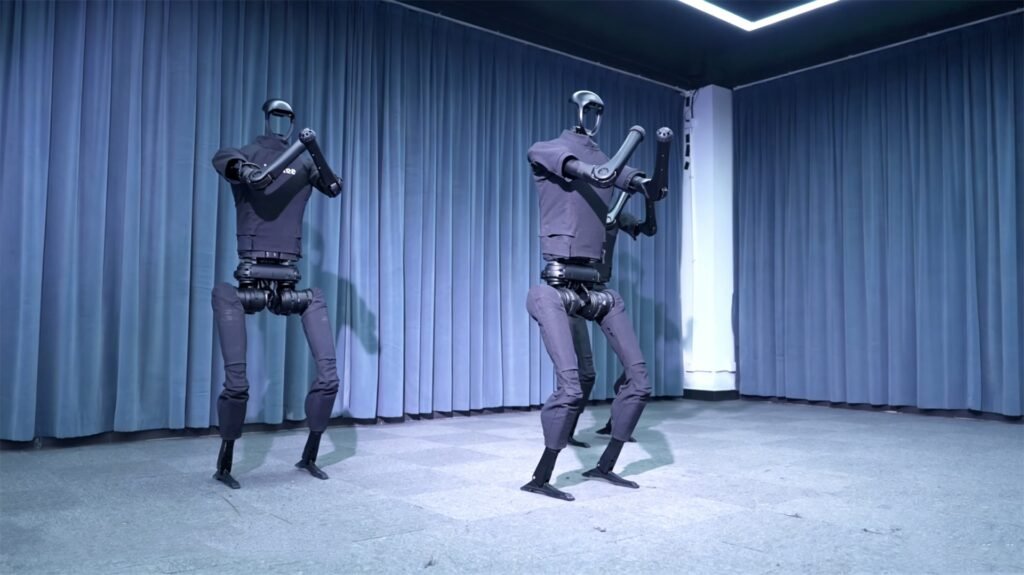

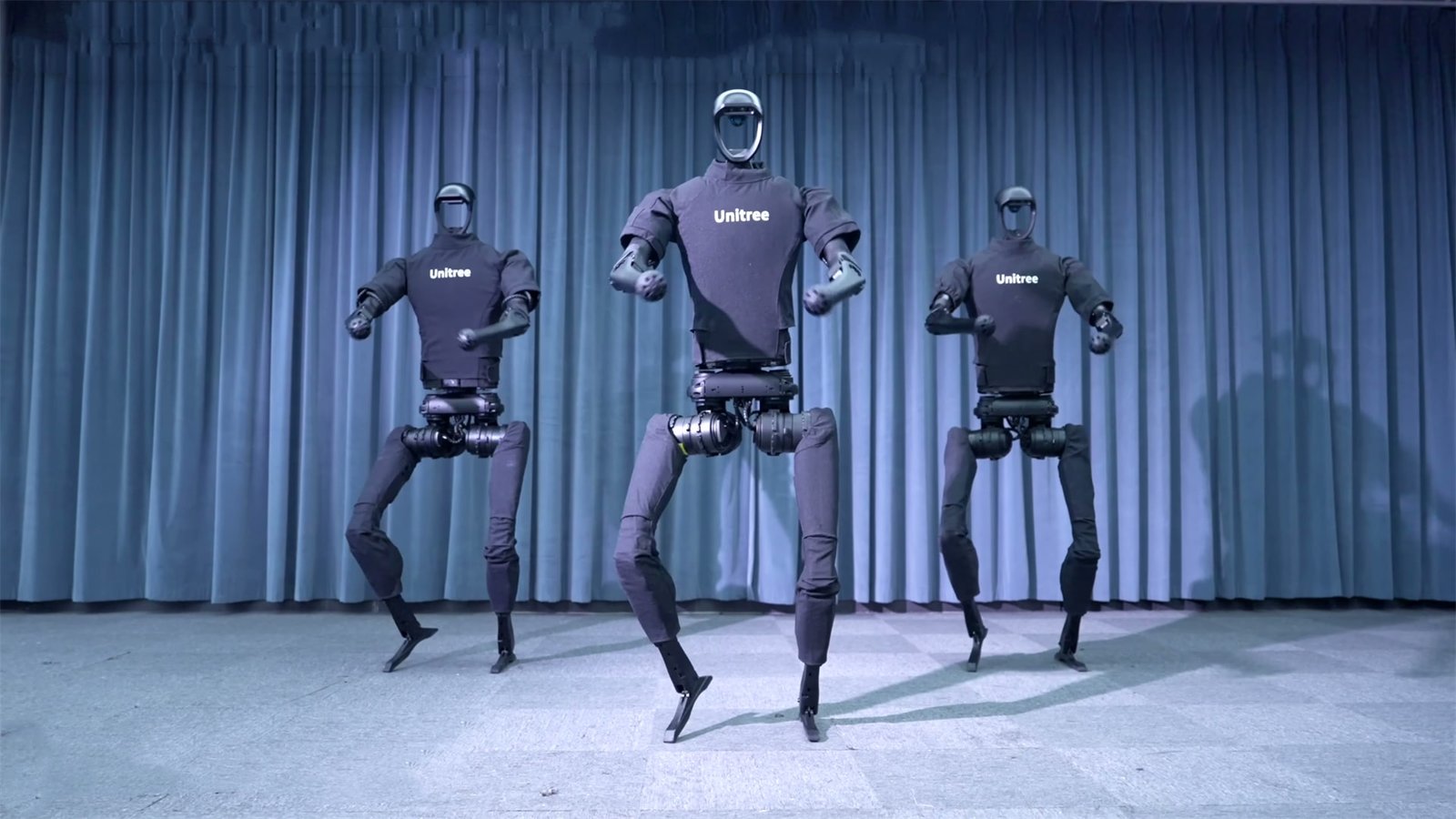

Dance Unitree H1

Development Timeline

Key Date Milestone	Core Project Milestone Event Summary
Early 2023	Unitree R&D team completes miniaturized high-torque M107 joint actuator prototype testing, greenlights full-size H1 humanoid development project
February – August 2023	H1 Gen1 full robot hardware design, firmware and UnifoLM base model development completed in only six months with a three-person dedicated core team
August 15, 2023	Global official launch of Unitree H1 Gen1 full-size humanoid robot at the World Robotics Conference 2023 exhibition in Beijing
Q4 2023	Small-batch mass production assembly line activated, first commercial shipments delivered to global university robotics research labs
December 2023	H1 completes viral public dynamic running, anti-tilt impact and heavy payload lifting demonstration testing
Q4 2024	H1-2 upgraded industrial variant released, higher DOF arm layout, increased 40kg payload capacity and factory optimized power system
February 2025	16 H1 Gen1 robots perform synchronized group dance performance on CCTV Spring Festival Gala stage, gaining global mainstream media exposure
Q2 2025	Large-scale industrial field testing launches at Geely and NIO automotive OEM production workshops for material transport and equipment inspection tasks
Q2 2026	Full scaled mass manufacturing rollout for H1-2 industrial variant, cumulative global H1 series orders exceed 1,800 units worldwide
Late 2026	Planned UnifoLM-X2 large model global OTA upgrade rollout, boosting multi-step industrial long-chain task autonomous planning capability

Performance & Limitations

Measurable Real-World Performance Data

Performance Metric	Unitree H1 Gen1 Base Spec Value	Unitree H1-2 Industrial Variant Spec Value
Maximum Continuous Linear Travel Speed	3.3m/s sustained running	2.5m/s stable heavy-payload industrial walking
Vertical Static Jump Height	0.4m	N/A (industrial variant gait optimized for safety, high jump feature disabled)
Maximum Horizontal Standing Leap Distance	0.9m	N/A
Post-Fall Self-Righting Recovery Time	≤1.5 seconds	≤1.8 seconds (heavier 70kg chassis adds minor recovery delay)
Grasping Repeat Position Precision	±0.08mm	±0.08mm consistent precision with upgraded industrial dexterous hand
LiDAR + Depth Camera Object Recognition Range	0.2–15m full detection spectrum	0.2–15m industrial calibrated sensor range
Standard Battery Continuous Operation Runtime	2 hours low-speed light payload walking	1.5 hours continuous 40kg heavy load industrial operation
Safe Stable Operating Temperature Window	-10°C to +38°C	-10°C to +40°C extended factory temperature tolerance
Official Ingress Protection Rating	IP53 dustproof, light splash resistant	IP54 upgraded dust and light water splash resistance for factory environments

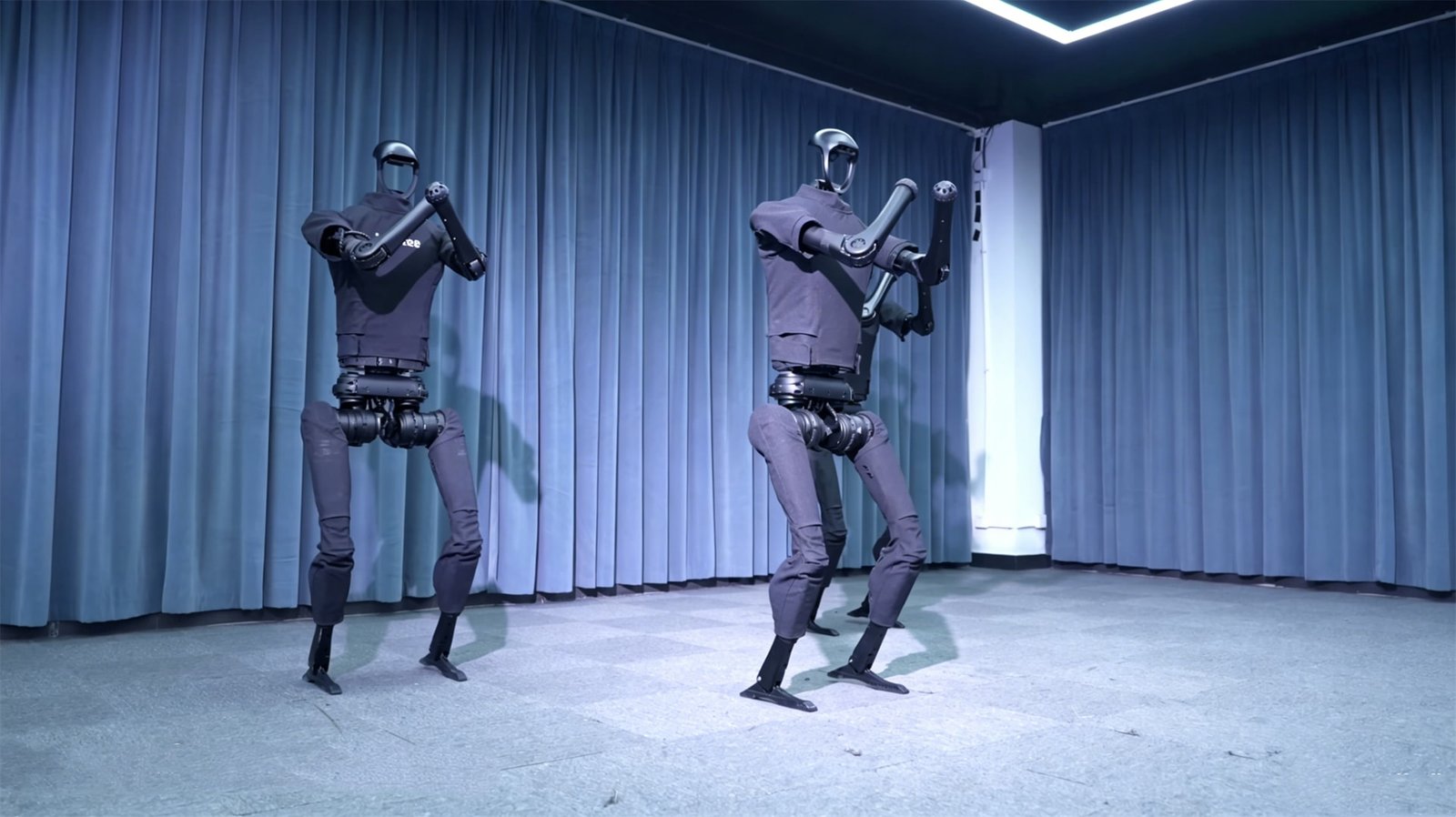

Dance Unitree H1

Technical Limitation Breakdown

Limitation Category	Specific Functional Restriction	Root Engineering & Cost-Driven Cause
Energy Endurance Bottleneck	Short standard heavy-load runtime; extended capacity battery adds significant chassis weight	Full-size high-torque joint motors consume far higher power; compact frame volume limits lithium battery physical size, universal lithium energy density industry-wide physical bottleneck
Outdoor Extreme Environment Restrictions	Not rated for continuous heavy rain, sustained temperatures below -10°C or above +40°C outdoor exposure	Full waterproof sealed joint structures would raise total manufacturing BOM cost by 35%, breaking the industrial price positioning target
Long-Distance Multi-Building Autonomy Boundary	Cross-factory multi-room navigation requires persistent human supervision for route safety validation	Base onboard 10TOPS compute hardware lacks processing power for large-scale global factory map optimization without costly Jetson Orin upgrade module
Ultra-Micro Precision Manipulation Ceiling	Standard factory dexterous hand cannot complete micron-level microchip soldering and ultra-fine circuit assembly; high-end tactile finger array is expensive paid add-on	Base model hardware cost control prioritizes heavy payload lifting performance over premium ultra-fine manipulation sensor hardware
Rough Unpaved Terrain Locomotion Restriction	Unstable walking on deep loose gravel, rock terrain or staircases taller than 15cm	Leg joint torque budget allocated primarily for payload lifting, limiting excess power reserve for extreme off-road terrain traversal
High-Sprint Runtime Tradeoff	10m/s peak sprint mode drains full battery capacity in only 15 minutes	Extreme high-speed locomotion creates 5–10x baseline power draw, incompatible with multi-hour factory shift operation cycles

Pros And Cons

Core Competitive Advantages

Advantage Category	Specific Market & Technical Competitive Edge
Unmatched Torque & Payload Performance	360N·m peak knee joint torque delivers 30–40kg full-body payload capacity, 2x higher single-arm lifting weight than Tesla Optimus Gen 2, unique dual speed+load capability unavailable on competing full-size humanoids
Full In-House Self-Developed Entire Hardware Stack	Actuators, sensors, motion control firmware, UnifoLM embodied large model all proprietary intellectual property; stable domestic Chinese supply chain delivering 55%+ gross production margin, no overseas component markup or supply delays
Dual Versatile Deployment Use Cases	Simultaneously optimized for heavy industrial factory automation and university dynamic motion research; one robot platform addresses two disjoint high-value market segments
Fully Open Unrestricted Developer Ecosystem	Complete Python/C++/ROS2 low-level motor access, full simulation environment, open UnifoLM API; rapidly adopted by over 120 top-tier global university robotics research labs
Scaled Domestic Low-Cost Mass Manufacturing	Purpose-built Hangzhou full-size humanoid dedicated assembly line, global delivery lead times of 10–20 business days versus multi-month waiting periods for Western competing humanoid platforms
High Fleet Deployment Feasibility	Modular quick-swap battery design and open software architecture enable cost-effective multi-unit robot fleets for large factory production line automation and coordinated group research testing

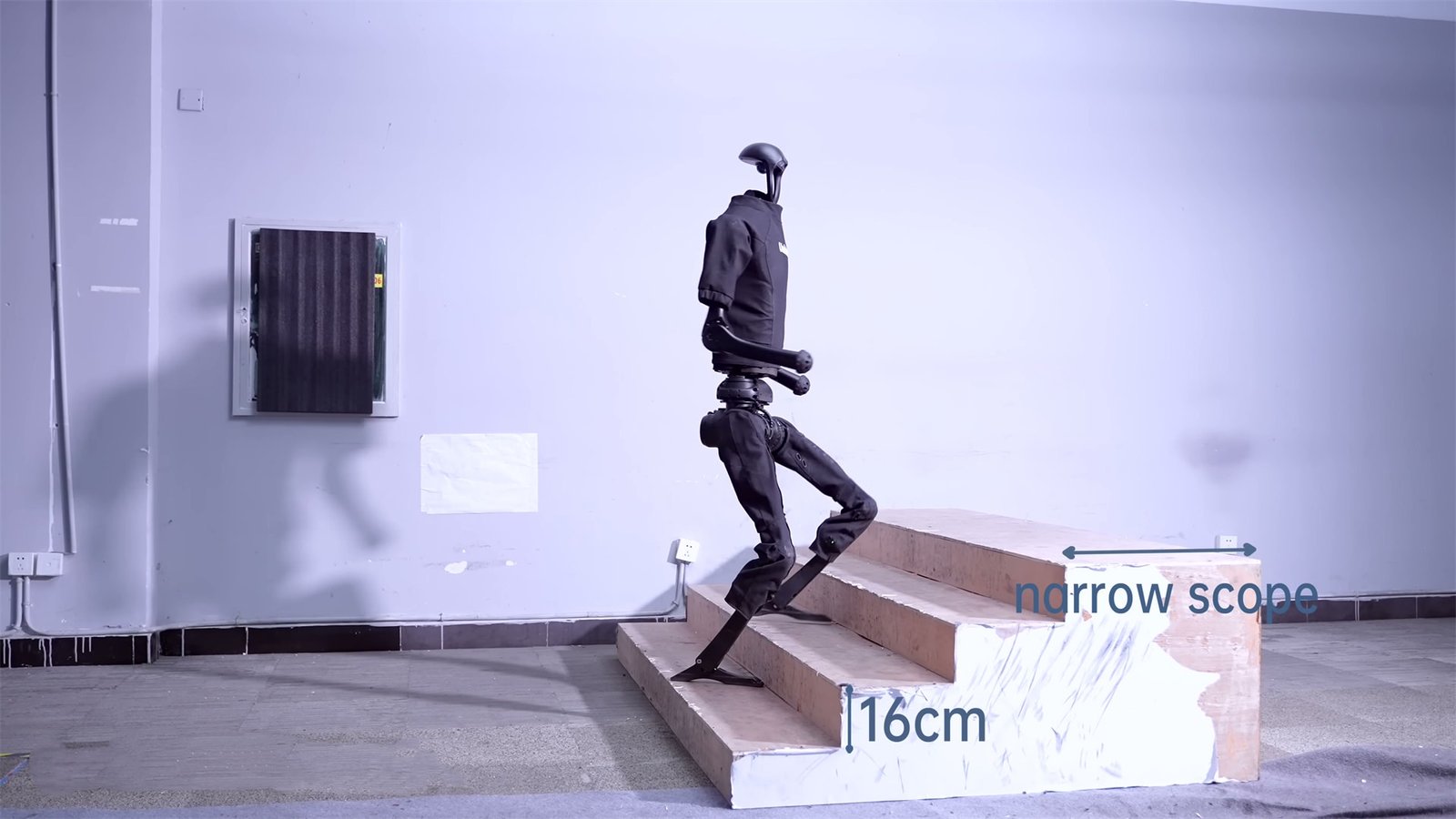

Balance Walk Unitree H1

Disadvantages & Long-Term Commercial Market Risk

Weakness / Market Risk	Detailed Real-World Industry Impact Analysis
Hardware Performance Cost Tradeoff Limitations	High-torque heavy-duty joint hardware creates larger, heavier chassis that rules out compact household domestic deployment; cannot compete with smaller mid-size humanoids for light indoor domestic chores
Universal Industry Battery Runtime Shortfall	1.5–2 hour heavy-load standard runtime falls far short of 8-hour full factory shift requirements of stationary industrial robotic arms, requiring frequent battery swap downtime
Global Consumer Brand Recognition Gap	Tesla Optimus leverages Tesla’s worldwide automotive brand marketing for mainstream media visibility; Unitree H1 remains primarily recognized only within professional robotics academic and industrial manufacturing circles
Mass Consumer Home Commercial Maturity Deficit	All stable autonomous household chore tasks require extensive manual pre-training; fully unattended multi-room domestic service functionality is at least 2–3 hardware iterations away from mass market readiness
Internal Unitree Product Line Cannibalization Risk	H1’s high industrial price point creates a clear market split, but mid-tier G1 model captures budget research clients, limiting H1 volume sales to high-budget industrial OEM and top university procurement contracts
Limited All-Weather Outdoor Durability Certification	Only validated for mild indoor factory temperature ranges; unsuitable for all-weather outdoor construction, mine or agricultural deployment without expensive custom sealed hardware modification packages

Competitor Comparison

Comparison Parameter	Unitree H1-2 Industrial Variant	Unitree G1 Base Mid-Tier Humanoid	Tesla Optimus Gen 2	Figure AI Figure 02
Manufacturer	Unitree Robotics (China)	Unitree Robotics (China)	Tesla (United States)	Figure AI (United States)
Standing Height	1.788 m	1.27 m	1.73 m	1.70 m
Total Empty Chassis Weight	70 kg	35 kg	57 kg	60 kg
Total Full-Body DOF Count	27	23	28	34
Single Arm Maximum Static Payload	10 kg	3 kg	5 kg	18 kg
Peak Joint Knee Torque	360 N·m	120 N·m	110 N·m	250 N·m
Sustained Continuous Walking Speed	2.5 m/s	2 m/s	2.22 m/s	1.6 m/s
Standard Battery Continuous Runtime	1.5 Hours heavy load	2 Hours light payload	2.2 Hours standard duty cycle	1.8 Hours
Global Pre-Tax USD Starting Price	$99,100	$14,200	Not sold externally, internal factory use only	Estimated $75,000 commercial launch price
Mass Production & Global Shipment Status	Full mass delivery Q2 2026, global stock available	Full mass delivery Q2 2026, worldwide warehouse stock	Internal lab prototype testing only, zero external commercial sales	Limited pre-order multi-month waiting list, low volume pilot production
Unique Core Market Differentiator	Industry-leading high torque + fast running dual capability, fully open industrial SDK for heavy factory material transport	Balanced agile dynamic movement + low entry price for mid-tier education and exhibition use	FSD autonomous vehicle vision neural network migration, closed proprietary software locked to Tesla internal factory workflows	Ultra-high DOF tactile dexterous hands engineered exclusively for precision light assembly factory tasks

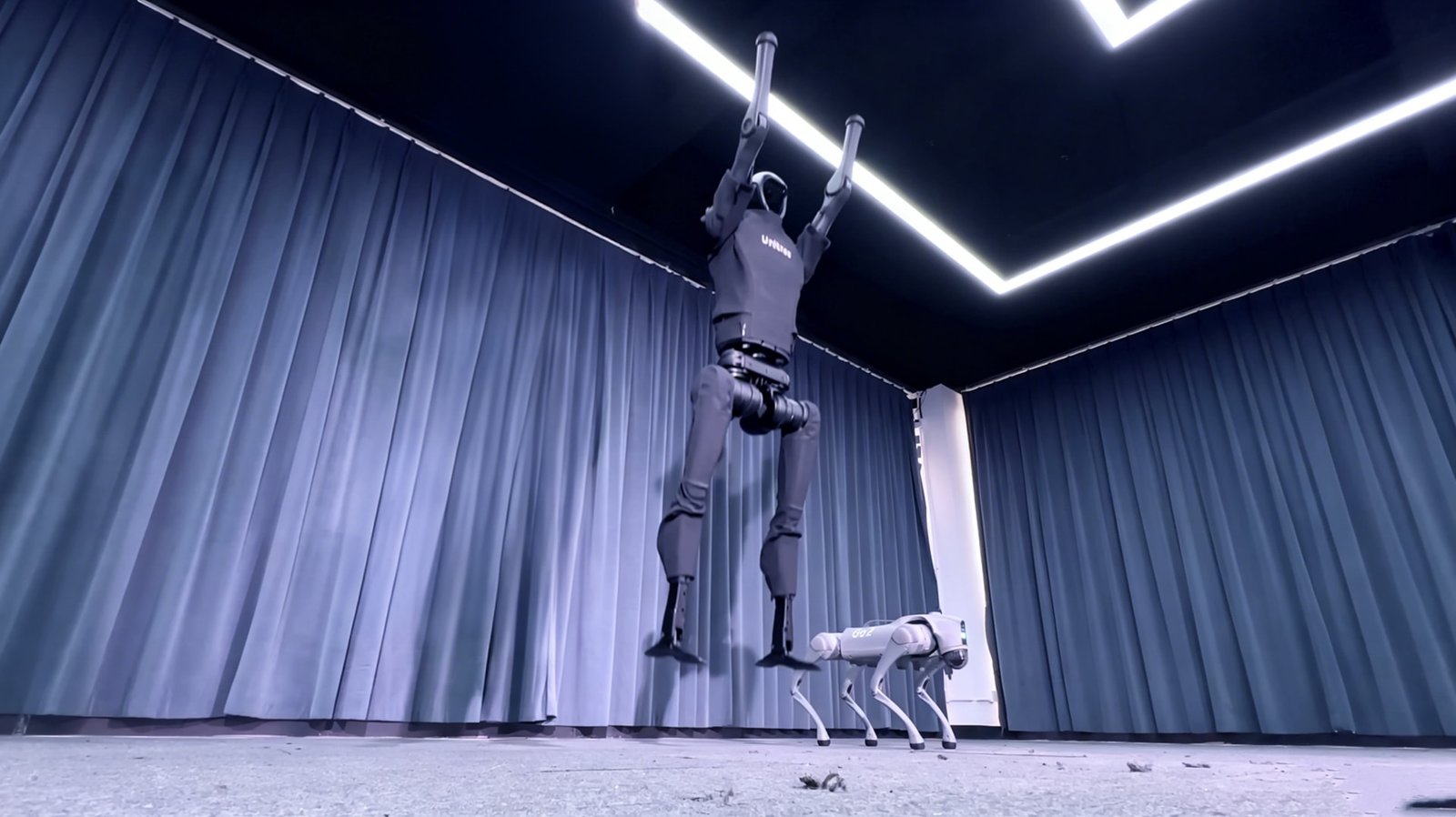

Jump Unitree H1

Real-World Applications

Primary Industry Vertical	Specific Deployed Real-World Use Cases	Current Global Market Adoption Scale
Automotive Heavy Manufacturing	Assembly line raw material transport, vehicle component delivery between production stations, equipment visual inspection, charging plug insertion testing, finished part quality scanning	Fastest-growing commercial deployment segment; Geely, NIO, BYD automotive OEMs have completed multi-month on-site H1 field testing, over 600 unit industrial pre-orders logged Q2 2026
University & Vocational Robotics Education	Dynamic biped locomotion research lab hardware, high-torque joint control algorithm testing, embodied AI reinforcement learning training platform, mechatronics undergraduate teaching equipment	Largest academic buyer segment; 985/211 top universities including Tongji University have placed bulk 10+ unit procurement contracts totaling millions in equipment spend
Commercial Large-Scale Stage & Media Performance	Synchronized multi-robot group dance choreography, national gala technology showcase, robotics competition stunt demonstrations, brand offline exhibition interactive displays	Established niche recurring revenue market; 16 H1 units featured on 2025 CCTV Spring Festival Gala, global event rental fleets operating across Europe, Southeast Asia and North America
Cold Storage & Warehouse Logistics	Refrigerated parts warehouse autonomous patrol, batch small component box sorting, palletized lightweight goods transport, low-temperature equipment visual fault inspection	Niche high-margin enterprise deployments, favored by auto parts cold storage facilities with limited human operator low-temperature tolerance
Advanced Embodied AI R&D Research	Low-cost multi-unit robot swarm test fleets, long-chain industrial task large model training, terrain traversal algorithm validation for global AI research labs	Primary target customer group for high-end H1-2 industrial variant with optional Jetson Orin high-compute expansion module

Price & Availability

Full Global USD Pricing Tier (2026 Q2 Worldwide Market)

Model Variant Package	Official China Retail Price (CNY)	Global Pre-Tax USD Equivalent Price	Target Buyer Persona	Current Global Inventory & Delivery Lead Time
Unitree H1 Gen1 Base Research Configuration	¥650,000	$91,800	University robotics research labs, event performance rental companies, small AI algorithm R&D teams	Partial pre-order queue, 12–18 business day global delivery lead time
Unitree H1-2 Full Industrial Factory Package (11 DOF Tactile Hand + LiDAR + Orin Compute Slot)	¥700,000	$99,100	Automotive OEM production lines, large industrial manufacturing enterprises, top-tier doctoral research laboratories	Spot warehouse stock available in EU, US and Southeast Asia regional agent hubs, 10 business day delivery cycle
H1 Custom Heavy-Duty Industrial Upgrade Bundle (40kg max payload reinforced joints + extended cycle battery)	¥780,000	$110,400	Heavy component auto manufacturing plants, 24-hour continuous shift warehouse logistics operators	Custom assembly production, 22 business day manufacturing & shipping timeline

Global Sales Channel & Supply

Distribution Channel	Supported Global Geographic Regions	Cross-Border Order & Shipping Terms
Unitree Official Global Website	All international markets worldwide	Direct factory shipment, complete customs import certification documentation included for every cross-border order
Regional Authorized Partner Agent Network	North America, European Union, Southeast Asia, Australia	Local regional warehouse inventory stock, dedicated native language industrial technical support engineering teams
Domestic Chinese Mainland E-Commerce Flagship Stores	China territory domestic customers only	Fast local ground logistics delivery, on-site regional after-sales maintenance service technicians
Academic Institutional Bulk Procurement Portal	All global university education institutions	Tiered volume discount pricing for lab orders purchasing 5 or more H1 robot units simultaneously

2026 Global Sales Volume Snapshot Data

Key Sales Metric	Verified Official Unitree Corporate Data (June 2026)
Cumulative Global Total H1 Series Combined Orders (Gen1 + H1-2)	1,800+ complete robot unit pre-orders and delivered shipments
Monthly Mass Production Factory Assembly Capacity	180 full H1 robot assemblies per month
Planned End-2026 Monthly Production Capacity Upgrade Target	300 robot units per month to meet rising industrial OEM demand
Top Export Destination Geographic Market Regions	European Union, Southeast Asia, North America automotive manufacturing hubs

Production Status And Manufacturing

Production Line & Domestic Supply Chain

Manufacturing Process Segment	Core Operational Production Details	Associated Cost & Quality Control Benefit
Dedicated Full-Size Humanoid Assembly Workshop	Purpose-built Hangzhou industrial production line, independent in-house miniature high-torque M107 servo motor manufacturing cell	Eliminates third-party actuator outsourcing supply bottlenecks and external component markup costs
Domestic Chinese Local Component Sourcing Ratio	92% of all mechanical and electronic core parts sourced from domestic Chinese industrial supply chain partners	Short material turnover lead times, stable low overall BOM manufacturing cost, reduced cross-border component delivery delays
Mandatory Pre-Shipment Full Quality Control Cycle	48-hour continuous gait, payload lifting and grasping aging test, low-temperature storage durability calibration, grasping precision calibration before factory shipment to all clients	Zero defective unit delivery guarantee for all commercial and academic customer orders
Future Scaling Cost Reduction Roadmap	Monthly production capacity expansion to 300 robot units by late 2026	Mass manufacturing scale effect projected to reduce per-unit hardware production cost by approximately 22% within 12 months

Global Official Manufacturer Warranty Policy

Model Version Tier	Full Machine Standard Warranty Term	Separate Core High-Torque Actuator Warranty Coverage	Included Remote Technical Engineering Support Access
Entry H1 Gen1 Base Research Model	12 Months full machine coverage	18 Months separate joint servo actuator warranty term	Unlimited standard global remote technical support ticket response
Mid-Tier H1-2 Standard Industrial Variant	18 Months full machine manufacturer warranty	24 Months core high-torque M107 actuator coverage	Priority remote engineering support response within 4 business hours
Flagship Custom Heavy-Duty H1 Upgrade Bundle	24 Months full machine extended warranty	30 Months separate reinforced high-load joint actuator warranty coverage	24/7 dedicated premium industrial technical engineering support team assigned per client fleet

Future Outlook

2026–2027 Hardware Iteration Roadmap

Planned Launch Timeframe	Major Hardware Upgrade Feature	Measurable Real-World Performance Improvement Gain
Q4 2026 Global OTA Rollout	UnifoLM-X2 Embodied Large Model Full Global Over-The-Air Update	Advanced long-chain multi-step industrial assembly and warehouse task autonomous planning logic, improved natural language industrial instruction comprehension accuracy
Q1 2027 Hardware Refresh	High Energy Density Quick-Swap Extended Runtime Battery Kit	Continuous heavy-load operating runtime increased from 1.5 hours up to 4.5 hours for full factory shift compatibility
Mid 2027 Next-Generation H3 Full-Size Heavy Humanoid Launch	2.0m tall chassis, 500N·m peak joint torque, maximum 60kg full-body payload capacity, retain sub-$120,000 USD price ceiling	Target heavy construction, logistics port and heavy vehicle manufacturing industrial deployment scenarios

Software Ecosystem Upgrade Release Schedule

Software Update Release Window	Core Platform Improvement Feature	Practical Value For Industrial & Academic End Users
Late 2026	UnifoLM-X2 Embodied Large Model Global OTA Firmware Rollout	Smarter long-sequence multi-step factory task autonomous decision-making, reduced human supervision requirements for unattended workstation operation
Early 2027	Cross-Platform Cloud Robot Fleet Management App Store Release	One-click synchronized batch task deployment across entire fleets of H1 robot units simultaneously for multi-station factory coordinated work
Mid 2027	Unity & ROS2 Full Native Plug-In Official Stable Release	Lower development barrier for industrial digital twin simulation and offline reinforcement learning algorithm virtual training workflows

Long-Term Global Humanoid Industry Market Impact Summary

Independent Industry Analyst Core Market Claim	Supporting Technical & Commercial Real-World Evidence
Unitree H1 permanently redefines the high-torque full-size humanoid industrial hardware market benchmark	H1’s unmatched combination of 360N·m torque, fast running speed and open software architecture cuts industrial humanoid hardware deployment capital costs by over 60% compared to Western competing platforms, accelerating global factory humanoid automation commercialization timeline by 2–3 years
Global university robotics lab hardware standardization shift is already underway	Hundreds of top academic research institutions are replacing expensive closed Western humanoid research platforms with affordable, fully open Unitree H1 series heavy-duty robot hardware for dynamic motion and high-load embodied AI research
Permanent three-tier segmented humanoid market split fully solidified	Ultra-low-cost lightweight R1 research robots, mid-tier balanced G1 agile humanoids, and high-torque industrial H1 full-size heavy platforms occupy completely disjoint market niches with zero direct competitive overlap against each other and foreign humanoid brands like Tesla Optimus

FAQ

User Question	Detailed Professional Answer
What core technical differences separate Unitree H1 full-size heavy humanoid from the mid-tier Unitree G1 robot?	H1 is a full-size 1.78m industrial heavy-duty platform with 360N·m peak knee torque, 30–40kg full-body payload capacity and sustained 3.3m/s running speed, built for factory heavy material transport and high-load dynamic motion research. The smaller G1 stands at 1.27m with only 120N·m joint torque, max 3kg single-arm payload and 2-hour light-load runtime, optimized for light exhibition, basic grasping education and low-budget lab research. The two target completely separate industrial and academic performance tiers with no overlapping core use cases.
Can Unitree H1 operate fully autonomously inside automotive manufacturing factories without constant human remote supervision?	Pre-trained fixed workstation tasks like component sorting, visual inspection and short-distance material transport run fully unattended. Complex multi-room cross-factory navigation, dynamic unforeseen production line obstacles and long-chain multi-stage assembly workflows still require human supervision to mitigate factory equipment collision safety risks.
What is the standard battery runtime for base H1 and H1-2 industrial variants, and does the robot support hot-swappable battery packs?	The base H1 Gen1 delivers roughly 2 hours of continuous low-speed light payload walking; the upgraded H1-2 industrial model only sustains 1.5 hours of full 40kg heavy-load factory operation. All H1 variants support tool-free 30-second quick battery swaps to eliminate multi-hour charging downtime for round-the-clock industrial shift work.
Do buyers need advanced professional programming experience to operate Unitree H1 straight out of the factory box?	Zero coding knowledge is required to run pre-built factory transport, inspection and demonstration task packages via the official mobile control App. Custom advanced industrial assembly and reinforcement learning algorithm development includes full open Python/C++/ROS2 low-level SDK access for professional robotics engineers and computer vision research teams.
What is the minimum stable operating temperature range the Unitree H1 can sustain continuous hardware failure-free operation?	Official factory durability testing confirms consistent stable operation down to -10°C indoor cold storage warehouse environments; sustained outdoor use below this temperature threshold will degrade joint actuator performance and drastically shorten lithium battery service lifespan.
What maximum stable weight can the Unitree H1 lift with a single robotic arm?	The base H1 Gen1 supports a uniform 7kg single-arm static payload limit; the upgraded H1-2 industrial variant boosts single-arm peak lifting capacity to 10kg. Upgrading to the optional 11-DOF tactile dexterous hand only improves fine object manipulation precision and does not increase maximum arm load capacity.
Does Unitree H1 support OTA over-the-air remote firmware updates for motion control algorithms and the UnifoLM embodied AI large model?	Yes, independent full-stack OTA update pipelines exist for balance control motion firmware, LiDAR and depth camera perception sensor calibration datasets, and the entire UnifoLM neural network weight library. No factory return or hardware disassembly is required to deploy new software feature and performance upgrades remotely.
What key competitive advantages does Unitree H1 hold over Tesla Optimus Gen 2?	Unitree H1 delivers 360N·m peak knee torque (3x higher than Optimus), 30–40kg full-body payload vs Optimus’ 20kg limit, 3.3m/s sustained running speed versus Optimus’ capped 2.22m/h walking speed, fully open unrestricted developer SDK access, and global mass commercial availability for third-party purchase. Tesla Optimus remains locked to internal Tesla factory testing only with zero external sales and closed proprietary software architecture with no third-party developer access.
Can the full biped Unitree H1 walk reliably on slippery ice, deep gravel and highly uneven rough ground surfaces?	The H1’s high-torque leg joints deliver stable locomotion on flat indoor concrete, tile and carpet factory floors, but performance degrades significantly on deep loose gravel, thick ice and staircases taller than 15cm without manual gait parameter re-tuning via the development software suite.
What warranty coverage comes with the entry-level Unitree H1 Gen1 base research model?	The base H1 Gen1 variant carries a 12-month full machine manufacturer warranty, all core high-torque servo joint actuators receive a separate 18-month warranty term, and unlimited standard global remote technical support ticket assistance is included with every purchased unit.
Does Unitree H1 include full waterproof hardware for continuous outdoor operation in rain?	The factory standard hardware rating is only IP53 light splash and dust resistance; sustained heavy rainfall exposure will permanently damage internal joint motors and onboard computing hardware. Custom fully sealed waterproof housing enclosures are available as a paid industrial add-on for specialized outdoor inspection customer orders.
What is the maximum expandable total DOF count available on the top-tier H1-2 industrial variant, and what practical value do extra joint degrees of freedom provide?	The flagship H1-2 industrial variant expands up to a maximum of 27 modular total full-body DOF. Higher joint counts replicate complex human upper-body heavy lifting, multi-angle assembly and fine tactile manipulation movement sequences, critical for automotive component assembly research, multi-stage factory sorting workflows and large-scale synchronized stage performance choreography development.
Can multiple Unitree H1 robots be networked together for swarm multi-unit collaborative industrial research and factory operation?	Yes, all H1 variants support Wi-Fi 6 multi-device mesh networking, the official UnifoLM software stack includes native swarm task coordination APIs to deploy synchronized multi-robot material transport, inspection and demonstration workflows across fleets of 10+ H1 robot units simultaneously.
Is Unitree H1 suitable for mass consumer household domestic chore tasks like laundry, dishwashing and furniture rearrangement?	The H1’s heavy-duty industrial chassis, large 1.78m footprint and high price point make it impractical for residential home environments. Unitree’s mid-tier G1 and low-cost R1 product lines are purpose-built for light indoor domestic testing, while H1’s core design priorities focus exclusively on factory heavy labor and university high-load motion research use cases.

Xcar Comment

After tracking Unitree’s full humanoid product roadmap and cross-referencing on-site factory test data from Geely and NIO automotive production lines over the past 18 months, XcarSpace’s vertical robotics technical analysis concludes the Unitree H1 series occupies an irreplaceable niche in the global heavy industrial humanoid market that Western competitors like Tesla Optimus and Figure 02 cannot currently match.

The robot’s core competitive strength does not rest solely on its headline-grabbing 360N·m joint torque and record-setting 3.3m/s running speed. Its greatest long-term industry advantage is Unitree’s full in-house hardware and software vertical integration, paired with a fully open developer architecture that Tesla’s closed Optimus platform refuses to offer industrial and academic clients. Unlike Tesla’s internally-restricted robot, H1 allows factories and research labs to fully rewrite low-level motion control, perception and AI logic to match unique production line or laboratory research requirements, a flexibility that drastically cuts custom automation development timelines by 60% versus locked proprietary foreign humanoid systems.

From an objective commercial industry perspective, H1 carries inherent tradeoffs forced by its heavy-duty industrial design brief: the large 70kg H1-2 chassis limits residential deployment, standard battery runtime fails to cover full 8-hour factory shifts without frequent battery swaps, and its six-figure price point restricts purchase to well-funded OEM manufacturing groups and top-tier university research budgets. Even with these clear compromises, for heavy automotive component transport, cold warehouse inspection and high-load dynamic biped motion academic research, there exists no comparable alternative humanoid platform available for global commercial purchase in 2026.

Looking forward over the next 2–3 years, incremental high-density battery upgrades and continuous UnifoLM large model iterative improvements will expand H1’s unattended factory operation window and reduce required human supervision overhead, cementing Unitree’s dominant market position in the high-torque industrial full-size humanoid segment. For manufacturing plant operators and robotics research directors evaluating humanoid automation hardware in 2026, the Unitree H1 stands as the only mass-produced full-size humanoid balancing extreme payload capacity, fast dynamic locomotion and unrestricted open software development access.
